Birżebbuġa
.
Malta
Torrent Pharma
Category
Enterprise building, Heathcare
Year
2024

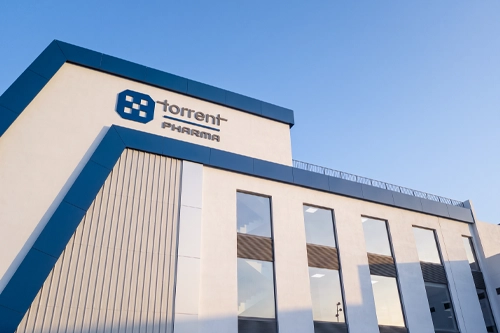

The new Torrent Pharma pharmaceutical facility in Malta required a structured cabling infrastructure capable of supporting specialised laboratories, administrative areas and systems such as Wi-Fi, CCTV and access control.
Alberta, barpa’s partner in Malta, was responsible for installing the copper and fibre optic infrastructure, ensuring connectivity between the different areas of the building.
Challenge
The installation took place in a complex laboratory environment, with specialised machinery, technical equipment and several activities being carried out simultaneously.
The main challenge was to ensure proper cable routing, segregation and mechanical protection without interfering with laboratory operations or other installations.
Implemented Solution
The implemented infrastructure combines Cat.6A U/FTP copper cabling in laboratory and administrative areas with a fibre optic backbone comprising 48-core OS2 single-mode and 48-core OM4 multimode fibre.
This solution connects the building’s main IT spaces and supports the facility’s networking, security and communication systems.
The installation was carefully coordinated with other ongoing works on site. Upon completion, all copper links were individually tested and certified, achieving PASS results against the TIA Cat.6A Permanent Link test limit.
Discover some of barpa’s solutions used in this project
Partner
Alberta, barpa’s partner in Malta, specialises in fire protection, security systems and structured cabling solutions and was responsible for implementing the project. Its technical expertise and on-site coordination were essential in meeting the demands of the pharmaceutical environment.
Results
The project provided Torrent Pharma with a fully tested and certified network infrastructure, capable of supporting the connectivity requirements of its laboratory, administrative and specialised areas.
The combination of Cat.6A copper cabling and fibre optics ensures connectivity between the main IT spaces, meeting the facility’s technical requirements.
This project demonstrates the importance of combining high-quality connectivity solutions with specialised technical expertise, particularly in demanding environments where planning, coordination and reliability are essential.
