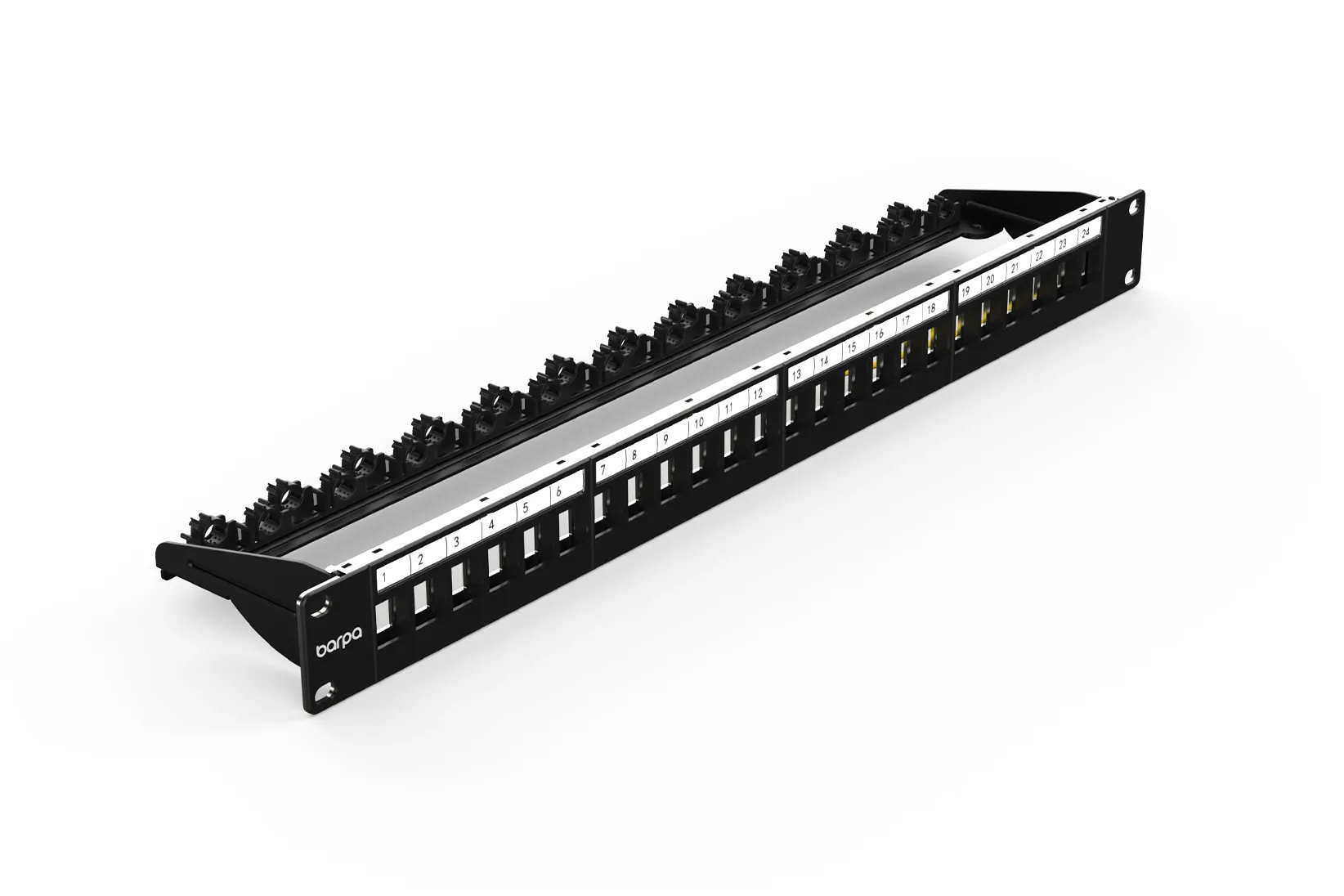

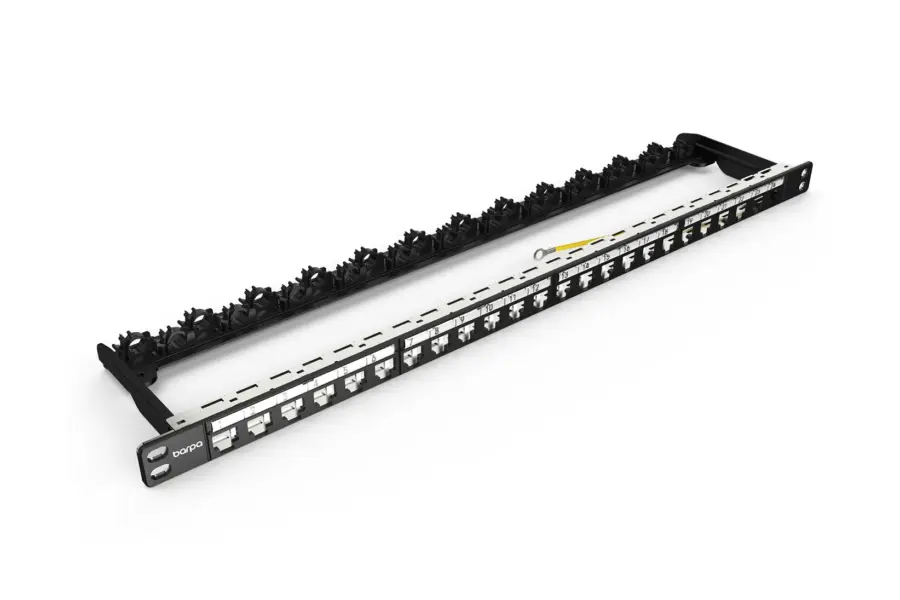

Patch Panel – Empty – 24 Ports

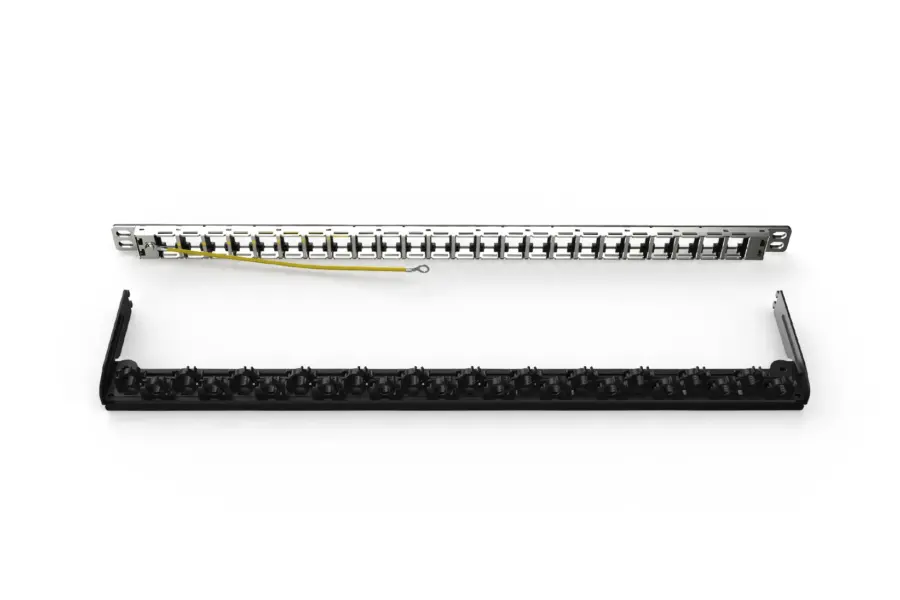

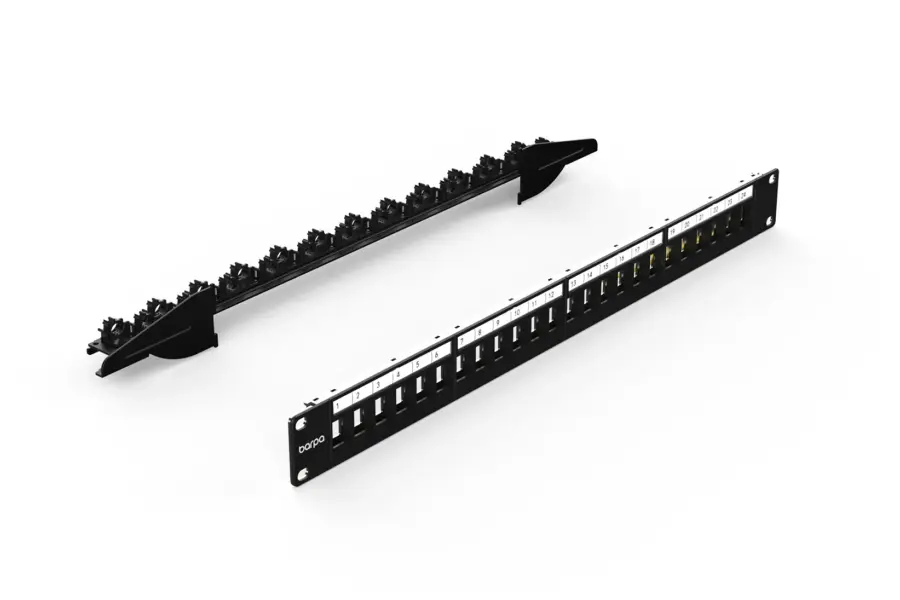

This Empty Patch Panel belongs to the barpa cabling system. It accepts connectors from category 6 to 6A, UTP and STP. Has a very special design with a rear cable retention system with adjustable mechanical adjustment, that promotes quick installation and fast termination, avoiding the traditional fastening system by cable tie. Includes tag holder with plastic protection for identification of RJ 45, also with earth connection. For Modular Keystone.

			INNER BOX		OUTER BOX
Code	Description	Unit weight (kg)	Dimensions (mm)	Quantity (un)	Dimensions (mm)	Quantity (un)
82230101024	Empty Patch Panel 0.5U	0.40	505x120x55	1	520x260x300	10
82230101124	Empty Patch Panel 1U	0.46	505x120x55	1	520x260x300	10

Patch Panel – Empty – 24 Ports – Datasheet 0.5U

Patch Panel – Empty – 24 Ports – Declaration of Conformity 0.5U

Patch Panel – Empty – 24 Ports – Datasheet 1U

Patch Panel – Empty – 24 Ports – Declaration of Conformity 1U

Patch Panel – Empty – 24 Ports – Compliance Statement – 1U – Cat.6A Shielded

Patch Panel – Empty – 24 Ports – Compliance Statement – 1U- Cat.6A Unshielded

Patch Panel – Empty – 24 Ports – Compliance Statement – 1U – Cat.6 Shielded

Patch Panel – Empty – 24 Ports – Compliance Statement – 1U – Cat.6 Unshielded

Patch Panel – Empty – 24 Ports – Verification of EMC Compliance

Patch Panel – Empty – 24 Ports – Verification of LVD Compliance

Patch Panel – Empty – 24 Ports – Label Template

Patch Panel – Empty – 24 Ports – Editable Label Template
