Cable Cat.7A S/FTP – LSZH – 23AWG

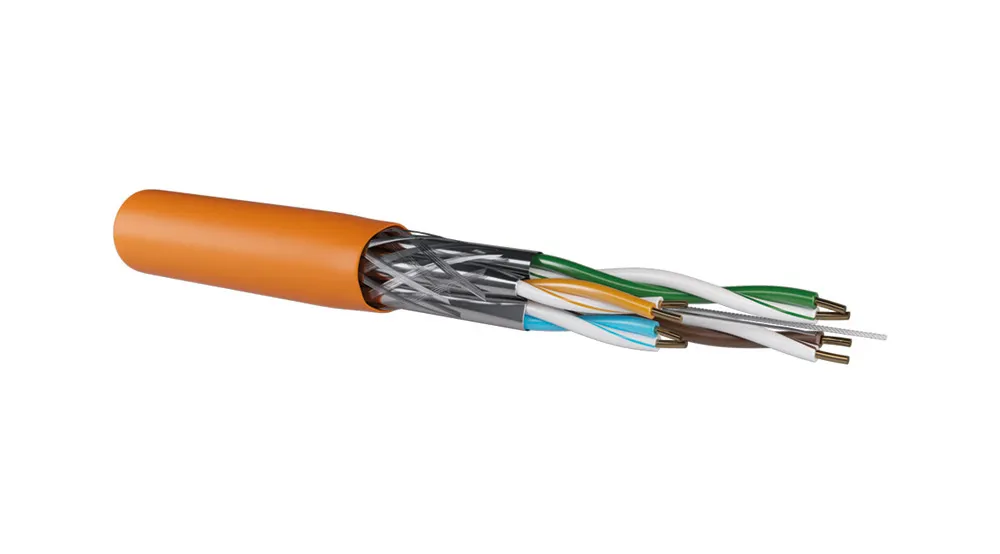

This LAN cable has an individual screen for each pair and then an overall braid screen to improve the quality of the transmission. This cable was designed to Support all Class FA protocols including 10GBASE-T, with performance up to 1000MHz. It’s suited for horizontal and backbone area.

Code	CPR - Classe	Type of package	Size of package (mm)	Gross weight (kg/item)	Net weight (kg/item)	Quantity (m)
82225421030C1	Cca-s1a,d1,a1	Drum	Ø380x240	19	17.5	305
82225421050C1	Cca-s1a,d1,a1	Drum	Ø380x390	31	28.5	500

Cable Cat.7A S/FTP – LSZH – 23AWG – Datasheet

Cable Cat.7A S/FTP – LSZH – 23AWG – Declaration of Conformity

Cable Cat.7A S/FTP – LSZH – 23AWG – Declaration of Conformity RoHS

Cable Cat.7A S/FTP – LSZH – 23AWG – Declaration of Performance

Cable Cat.7A S/FTP – LSZH – 23AWG – Certificate of Constancy of Performance

Cable Cat.7A S/FTP – LSZH – 23AWG – Attestation of Conformity
