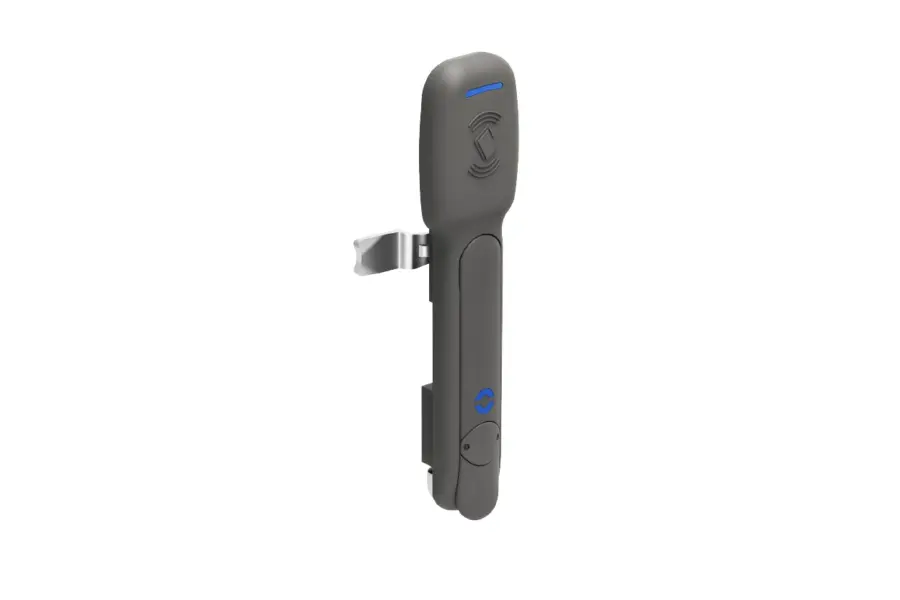

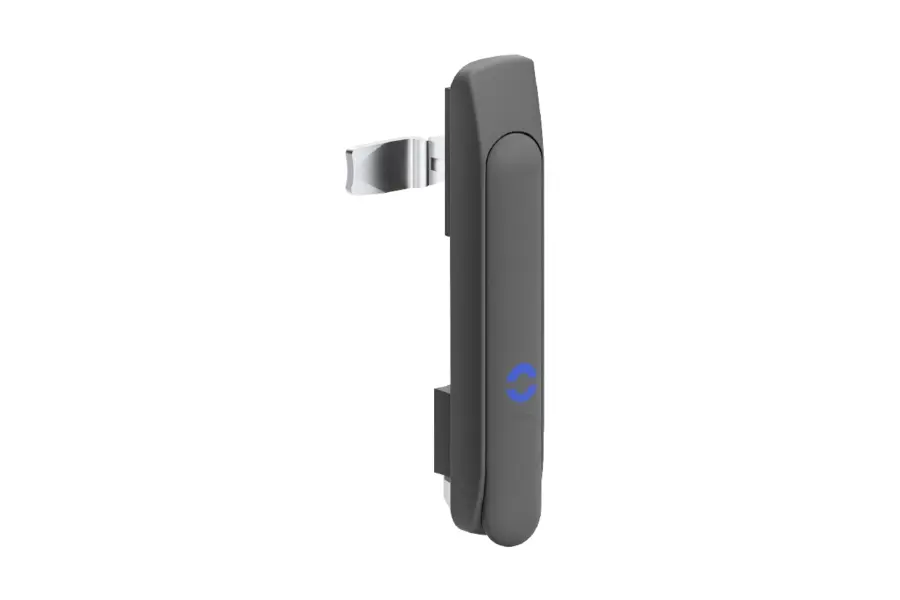

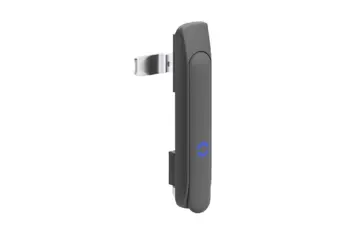

Cabinet Lock
The Electronic Cabinet Locks are designed to provide secure and reliable access control for ORION data center racks. Integrated with the ODCM (Orion Data Center Management) software, it enables efficient management and monitoring of high level security with various opening mechanisms.
| CODE | TYPE | MODEL | UNLOCKING MECHANISM | COMPATIBLE DOOR TYPE | LED INDICATOR | RFID READER | CONTROLLING OTHER LOCKS | BUILT-IN DOOR AND LOCK SENSOR |
|---|---|---|---|---|---|---|---|---|
| 82440101001 | Cabinet Lock | CL3103** | KEY | Single Door | Yes | No | No | Yes |
| 82440101005 | Cabinet Lock | CL3104** | KEY | Double Door | Yes | No | No | Yes |
| 82440101002 | Cabinet Lock | CL311 | KEY & Card Reader | Single Door | Yes | Yes | Yes | Yes |
| 82440101003 | Cabinet Lock | CL312 | KEY & Card Reader | Double Door | Yes | Yes | Yes | Yes |

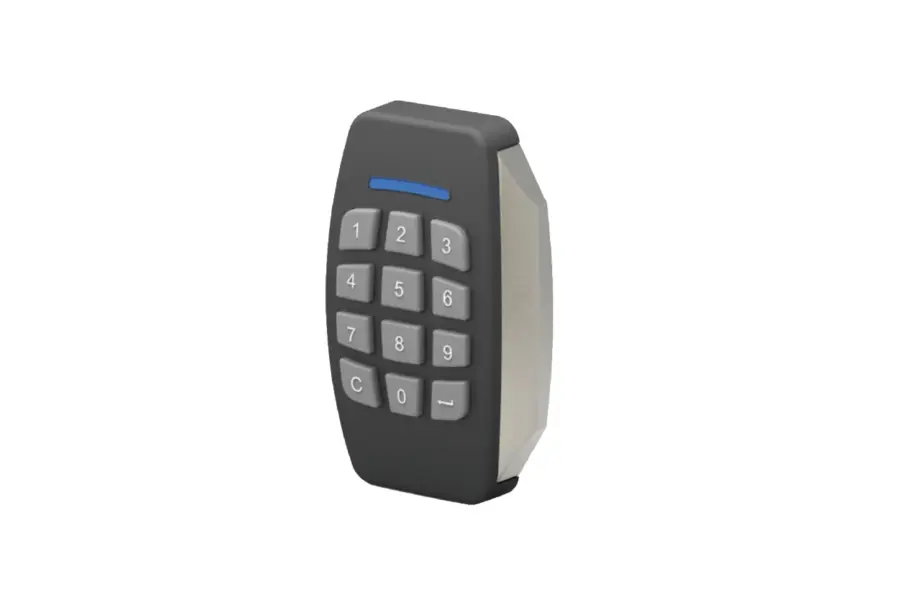

| 82440101004 | Lock Keypad* | S-AIK | Keypad | NA*** | Yes | Yes | Yes | NA*** |
| *Keypad control module is ordered separately and can be integrated with CL3103 & CL3104 models. **CL3103 and CL3104 electronic features are enabled when they are installed with Lock Keypad S-AIK. ***Non-Applicable |
||||||||
